Whyte

E-160 RSX V1

Name: E-160 RSX V1
Brand: Whyte
SKU: WE160RSXT2MV1-2
Price: 7599.0 EUR
Availability: InStock

7.599,00 €

9.699,00 €

Säästä 2.100,00 €

Sisältää arvonlisäveron. Toimituskulut lasketaan maksun yhteydessä.

Koko:

M L XL

Variaatio

Määrä:

Rengaskoko 29 tuumaa
Alumiinirunko
160mm etujousto
SRAM GX AXS-wireless vaihteisto
Toimitukset pyöräliikkeiden kautta
Toimituskulut 14,90€

Tuotteen esittely

Whyte E-160 RSX V1

e-160 RSX on suunniteltu ainoastaan paras ajotuntuma ja kaikissa tilanteissa paras mahdollinen hallinta mielessä. Tinkimätön Whyte rolled motor Total -geometria yhdistettynä ultra -matalaan painopisteeseen tarkoittaa huippuluokan käsiteltävyyttä, tasapainoa ja pitoa. Uusi, korkean 85Nm vääntömomentin omaava Bosch Performance Line CX-moottori on erittäin pienikokoinen ja se on varustettu poikkeuksellisen sujuvalla, normaalia polkemista simuloivalla virransyötöllä. Pyörästä löytyy tehokas 750 Wh: n akku joka on helppo irrottaa yhden pultin taktiikalla. Pyörän ohjaus tapahtuu uudella Led-ohjaimella ja Bosch Smart System-sovelluksella.

Tekniset tiedot

SPECIFICATION
MOTOR	Bosch Performance Line CX (25km/h) 85Nm
BATTERY	Bosch Power Tube PT750 Horizontal

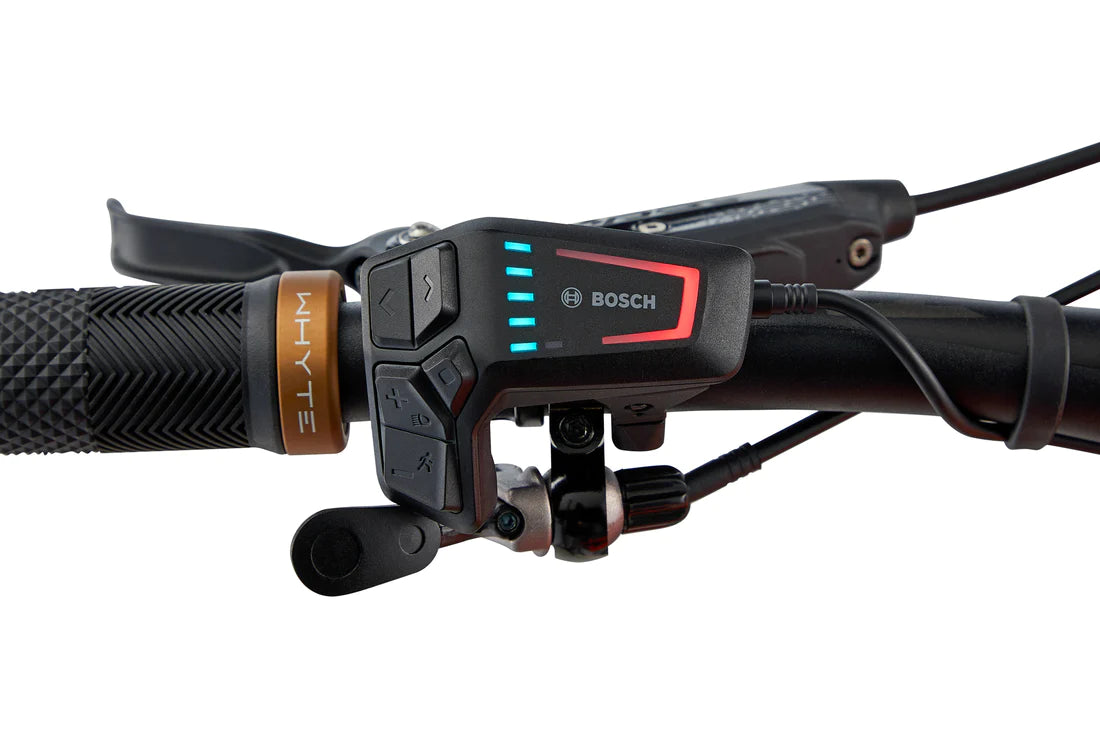

CONTROL	Bosch LED Remote
COLOUR	Gloss Orange with Black & Gold
FRAME	6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal Cable Routing, Shape.it Link and 12mm X 148mm Boost Dropouts
FORK	Fox Float 38, Performance Elite 29”, 160mm Travel, 44mm Offset with Grip 2 Damper, Tapered Steerer, 110mm x 15mm Boost, E-Thru Axle
REAR SHOK	Fox Float X Performance Elite DPS, Evol LV, Custom tuned for Whyte
HEADSET	FSA No. 55/35 Orbit 1.5 ZS, 1.8” Lower and 1 1/8” Upper Sealed Cartridge Bearings
REAR HUB	Hope Pro 4, Stainless Steel Bearings, 12mm x 148mm Boost, XD Driver, 32 Hole
FRONT HUB	Hope Pro 4, Stainless Steel Bearings, 15mm x 110mm Boost Thru Axle, 32 Hole
SPOKES	Black Sapim Race stainless steel double butted spokes built with silver brass nipples
RIMS	Hope Fortus 30, Tubeless Ready, 32 Hole
TYRE	Maxxis Assigai WT, TR, 29” x 2.5” 120TPI, EXO+ Casing, 3C Maxx Grip, Dual Compound, Front, Maxxis Minion DHR II WT, TR, 29” x 2.4” 120TPI, Double Down, 3C Maxx Terra, Dual Compound, Folding Bead, Rear
SHIFT LEVERS	SRAM GX AXS Eagle, 2 Button MMX
FRONT MECH	N/A
REAR MECH	SRAM GX1 AXS Lunar with Battery Protector
CASSETTE	SRAM XG-1275 Eagle, 10-50, 12 Speed
CHAIN	SRAM GX Eagle, 12 Speed
CRANKSET	SRAM EX1, 165mm, ISIS with X-SYNC 2, Direct Mount 36T for Bosch Performance Line CX, Black
BOTTOM BRACKET	N/A
SEATPOST	Crank Bro High-Line 3, 30.9mm, M/L 150mm, XL 170mm Travel. High-Line Ball Socket Remote Lever
SADDLE	Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail
HANDLEBAR	Whyte Custom 6061 Alloy, 30mm Rise, 35mm Bar Bore, 800mm Wide
STEM	Whyte Enduro Stem, 35mm Bar Bore, 35mm Extension
GRIPS	Whyte Lock-on Enduro Grip
BRAKES FRONT	SRAM Code RSC, 4 Piston with Sintered Metal Pads, 220mm Disc
BRAKES REAR	SRAM Code RSC, 4 Piston with Sintered Metal Pads, 200mm Disc
BRAKE LEVERS	SRAM Code RSC, MMX
PEDALS	None
WEIGHT	TBC

Kokosuositus

M	L	XL
168 - 178 cm	178 - 188 cm	188 - 198 cm

Geometriataulukko


SIZE	M	L	XL
A HEAD TUBE ANGLE	64.5	64.5	64.5
B SEAT TUBE ANGLE	75.5	75.3	75.1
C TOP TUBE HORIZONTAL	607.3	640.4	672.5
D BB HEIGHT ABOVE GROUND	340	340	340
E STAND OVER HEIGHT	771	773	776
F WHEEL BASE	1234.8	1269.2	1302.7
G CHAIN STAY LENGTH	446	446	446
H SEAT POST DIAMETER	30.9	30.9	30.9
I HEAD TUBE LENGTH	105	120	135
J SEAT TUBE LENGTH	420	445	470
STACK	631.5	645.1	658.6
REACH	455	483	510

Toimitukset

Lue tarkemmat toimitus- ja palautusehdot.

Whyte E-160 RSX V1

SPECIFICATION
MOTOR	Bosch Performance Line CX (25km/h) 85Nm
BATTERY	Bosch Power Tube PT750 Horizontal
CONTROL	Bosch LED Remote
COLOUR	Gloss Orange with Black & Gold
FRAME	6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal Cable Routing, Shape.it Link and 12mm X 148mm Boost Dropouts
FORK	Fox Float 38, Performance Elite 29”, 160mm Travel, 44mm Offset with Grip 2 Damper, Tapered Steerer, 110mm x 15mm Boost, E-Thru Axle
REAR SHOK	Fox Float X Performance Elite DPS, Evol LV, Custom tuned for Whyte
HEADSET	FSA No. 55/35 Orbit 1.5 ZS, 1.8” Lower and 1 1/8” Upper Sealed Cartridge Bearings
REAR HUB	Hope Pro 4, Stainless Steel Bearings, 12mm x 148mm Boost, XD Driver, 32 Hole
FRONT HUB	Hope Pro 4, Stainless Steel Bearings, 15mm x 110mm Boost Thru Axle, 32 Hole
SPOKES	Black Sapim Race stainless steel double butted spokes built with silver brass nipples
RIMS	Hope Fortus 30, Tubeless Ready, 32 Hole
TYRE	Maxxis Assigai WT, TR, 29” x 2.5” 120TPI, EXO+ Casing, 3C Maxx Grip, Dual Compound, Front, Maxxis Minion DHR II WT, TR, 29” x 2.4” 120TPI, Double Down, 3C Maxx Terra, Dual Compound, Folding Bead, Rear
SHIFT LEVERS	SRAM GX AXS Eagle, 2 Button MMX
FRONT MECH	N/A
REAR MECH	SRAM GX1 AXS Lunar with Battery Protector
CASSETTE	SRAM XG-1275 Eagle, 10-50, 12 Speed
CHAIN	SRAM GX Eagle, 12 Speed
CRANKSET	SRAM EX1, 165mm, ISIS with X-SYNC 2, Direct Mount 36T for Bosch Performance Line CX, Black
BOTTOM BRACKET	N/A
SEATPOST	Crank Bro High-Line 3, 30.9mm, M/L 150mm, XL 170mm Travel. High-Line Ball Socket Remote Lever
SADDLE	Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail
HANDLEBAR	Whyte Custom 6061 Alloy, 30mm Rise, 35mm Bar Bore, 800mm Wide
STEM	Whyte Enduro Stem, 35mm Bar Bore, 35mm Extension
GRIPS	Whyte Lock-on Enduro Grip
BRAKES FRONT	SRAM Code RSC, 4 Piston with Sintered Metal Pads, 220mm Disc
BRAKES REAR	SRAM Code RSC, 4 Piston with Sintered Metal Pads, 200mm Disc
BRAKE LEVERS	SRAM Code RSC, MMX
PEDALS	None
WEIGHT	TBC

M	L	XL
168 - 178 cm	178 - 188 cm	188 - 198 cm


SIZE	M	L	XL
A HEAD TUBE ANGLE	64.5	64.5	64.5
B SEAT TUBE ANGLE	75.5	75.3	75.1
C TOP TUBE HORIZONTAL	607.3	640.4	672.5
D BB HEIGHT ABOVE GROUND	340	340	340
E STAND OVER HEIGHT	771	773	776
F WHEEL BASE	1234.8	1269.2	1302.7
G CHAIN STAY LENGTH	446	446	446
H SEAT POST DIAMETER	30.9	30.9	30.9
I HEAD TUBE LENGTH	105	120	135
J SEAT TUBE LENGTH	420	445	470
STACK	631.5	645.1	658.6
REACH	455	483	510
