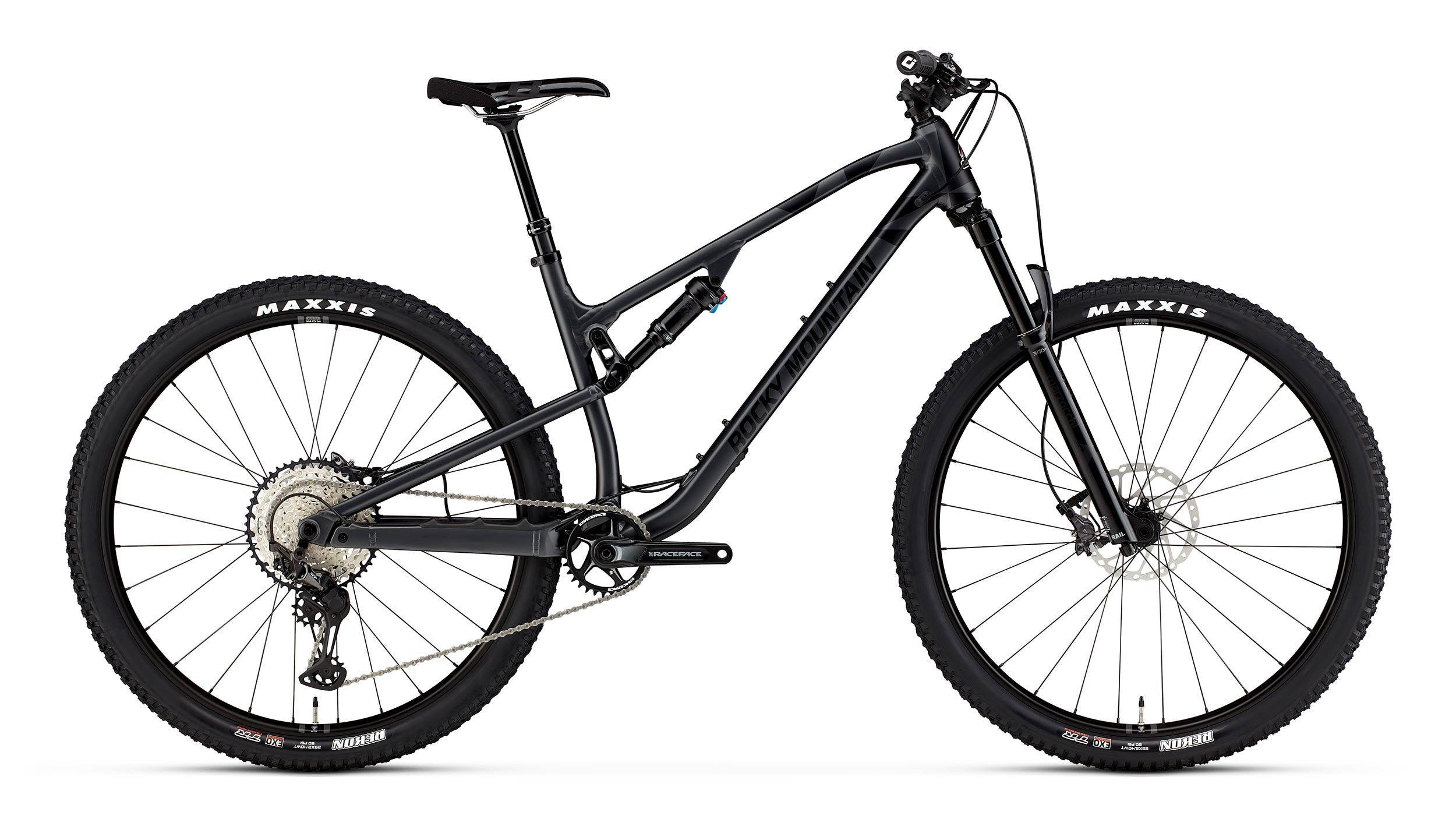

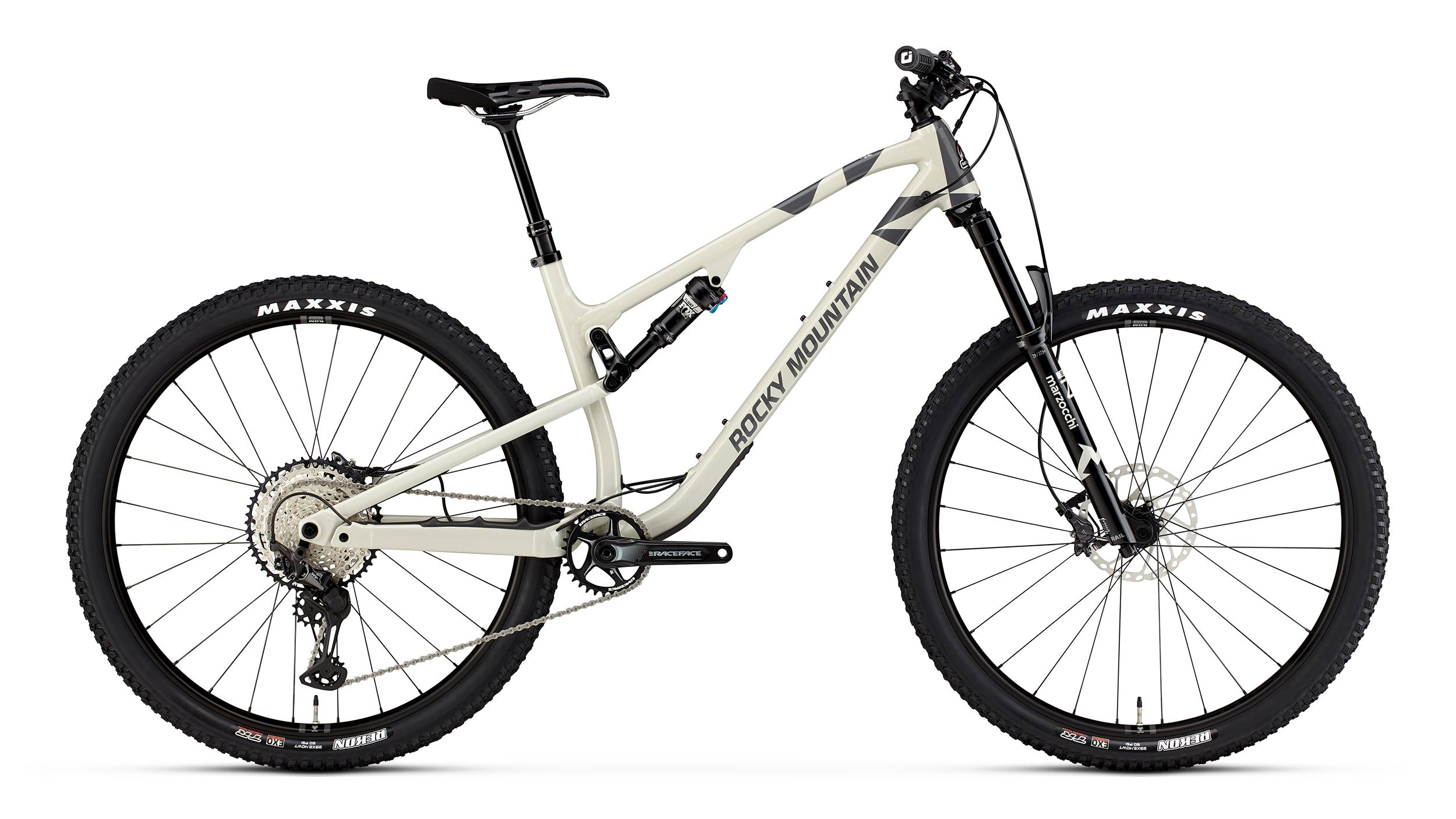

Element Alloy 50 -24

Name: Element Alloy 50 -24
Brand: Rocky Mountain
SKU: B0315MD1
Price: 4390.0 EUR
Availability: InStock

4.390,00 €

Sisältää arvonlisäveron. Toimituskulut lasketaan maksun yhteydessä.

Väri:

Carbon/Black

Carbon/Black Beige/Grey

Koko:

M L

Variaatio

Määrä:

Tuotteen esittely

Tekniset tiedot

SPECIFICATIONS	ELEMENT ALLOY 50
Frame	FORM™ Alloy \| Full Sealed Cartridge Bearings \| Press Fit BB \| Internal Cable Routing \| RIDE-4™ Adjustable Geometry \| 120mm Travel. FORM™ Alloy Rear Triangle
Fork	Marzocchi Z2 Float EVOL Rail 130mm \| 44mm Offset
Front Travel	130mm
Shock	Fox Float DPS Performance \| Sealed Bearing Eyelet \| 20x8mm F Hardware \| All Sizes = 190x45mm \| Size-Specific tune in FAQ
Rear Travel	120mm
Headset	FSA Orbit NO.57E ZS44\|56 \| Sealed 36°x45° Bearings \| 30.2mm x 41mm x 7.1mm Upper \| 40mm x 51.8mm x 7.5mm Lower \| 1.5" Crown Race
Stem	Rocky Mountain 31.8 XC \| 5° Rise \| All Sizes = 50mm
Handlebar	Rocky Mountain AM \| XS = 760mm \| SM - XL = 780mm Width \| 25mm Rise \| 9° Backsweep \| 5° Upsweep \| 31.8 Clamp
Grips	ODI Elite Pro Lock On
Brakes	Shimano XT 2 Piston \| Resin Pads
Shifters	Shimano SLX
Rear Derailleur	Shimano XT
Cranks & Chainring	Race Face Aeffect Cinch \| 32T \| 24mm Spindle \| Crankarm Length: XS - SM = 165mm \| MD - XL = 170mm
Bottom Bracket	Shimano SM-BBMT500
Cassette	Shimano SLX 10-51T
Chain	Shimano M7100
Front Hub	Rocky Mountain SL Sealed Boost 15mm
Rear Hub	Shimano SLX Boost 148mm \| 28H
Spokes	DT Swiss Competition 2.0/1.8/2.0
Rims	WTB ST Light i27 TCS 2.0 Tubeless \| 28H / Tubeless Ready - Tape / Valves Incl
Tires	F: Maxxis Rekon 2.4 WT EXO Tubeless Ready // R: Maxxis Rekon 2.4 WT EXO Tubeless Ready //
Seatpost	X Fusion Manic Composite 30.9mm \| XS - SM = 125mm \| MD = 150mm \| LG - XL = 170mm
Saddle	WTB Volt Race 142
Weight	14.1 KGS

Oheiset tiedot on pyritty ilmoittamaan mahdollisimman oikein. Oikeus virheiden korjaamiseen pidätetään.

Kokosuositus

Geometriataulukko

Katso miten Ride-4 vaikuttaa pyörän geometriaan Rocky Mountainin verkkosivuilta kohdasta ”GEOMETRY”.

Toimitukset

SPECIFICATIONS	ELEMENT ALLOY 50
Frame	FORM™ Alloy \| Full Sealed Cartridge Bearings \| Press Fit BB \| Internal Cable Routing \| RIDE-4™ Adjustable Geometry \| 120mm Travel. FORM™ Alloy Rear Triangle
Fork	Marzocchi Z2 Float EVOL Rail 130mm \| 44mm Offset
Front Travel	130mm
Shock	Fox Float DPS Performance \| Sealed Bearing Eyelet \| 20x8mm F Hardware \| All Sizes = 190x45mm \| Size-Specific tune in FAQ
Rear Travel	120mm
Headset	FSA Orbit NO.57E ZS44\|56 \| Sealed 36°x45° Bearings \| 30.2mm x 41mm x 7.1mm Upper \| 40mm x 51.8mm x 7.5mm Lower \| 1.5" Crown Race
Stem	Rocky Mountain 31.8 XC \| 5° Rise \| All Sizes = 50mm
Handlebar	Rocky Mountain AM \| XS = 760mm \| SM - XL = 780mm Width \| 25mm Rise \| 9° Backsweep \| 5° Upsweep \| 31.8 Clamp
Grips	ODI Elite Pro Lock On
Brakes	Shimano XT 2 Piston \| Resin Pads
Shifters	Shimano SLX
Rear Derailleur	Shimano XT
Cranks & Chainring	Race Face Aeffect Cinch \| 32T \| 24mm Spindle \| Crankarm Length: XS - SM = 165mm \| MD - XL = 170mm
Bottom Bracket	Shimano SM-BBMT500
Cassette	Shimano SLX 10-51T
Chain	Shimano M7100
Front Hub	Rocky Mountain SL Sealed Boost 15mm
Rear Hub	Shimano SLX Boost 148mm \| 28H
Spokes	DT Swiss Competition 2.0/1.8/2.0
Rims	WTB ST Light i27 TCS 2.0 Tubeless \| 28H / Tubeless Ready - Tape / Valves Incl
Tires	F: Maxxis Rekon 2.4 WT EXO Tubeless Ready // R: Maxxis Rekon 2.4 WT EXO Tubeless Ready //
Seatpost	X Fusion Manic Composite 30.9mm \| XS - SM = 125mm \| MD = 150mm \| LG - XL = 170mm
Saddle	WTB Volt Race 142
Weight	14.1 KGS

Oheiset tiedot on pyritty ilmoittamaan mahdollisimman oikein. Oikeus virheiden korjaamiseen pidätetään.
