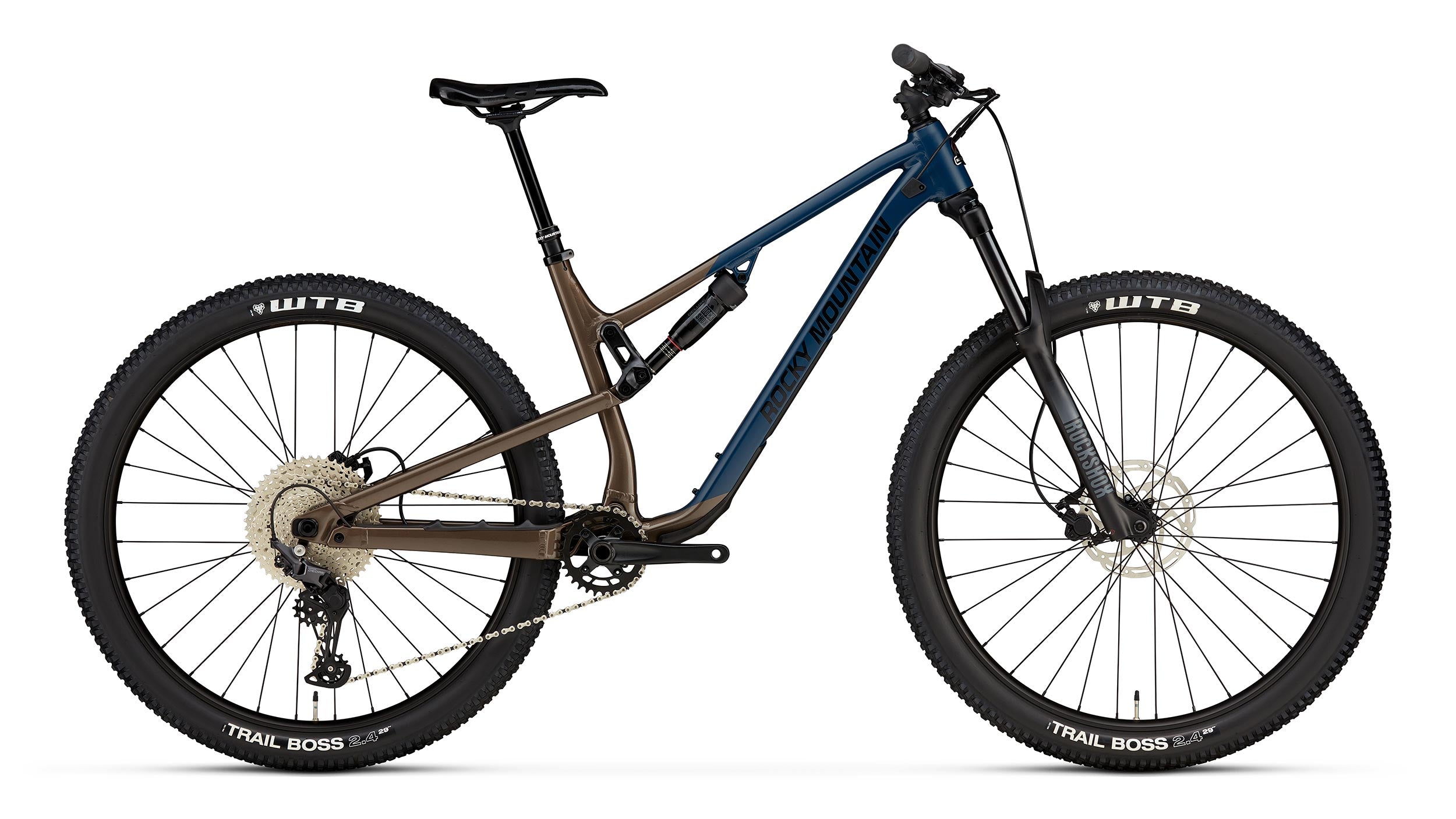

Instinct Alloy 10 -23
Sisältää arvonlisäveron. Toimituskulut lasketaan maksun yhteydessä.
- Rengaskoko 29 tuumaa
- Alumiinirunko
- 150mm etujousto
- Shimano Deore -vaihteisto
- Tektro HD-M275 -jarrut
- Toimitukset pyöräliikkeiden kautta
- Toimituskulut 14,90€
Instinct Alloy 10 -23
Alennushinta
2.030,00 €
Normaali hinta2.900,00 € (/)
Tuotteen esittely
Instinct Alloy 10 29" -23
Tekniset tiedot
| SPECIFICATIONS | INSTINCT ALLOY 10 |
|---|---|
| Frame | FORM™ Alloy | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-9™ Adjustable Geometry | 2 Position Axle | 140mm Travel. FORM™ Alloy Rear Triangle |
| Fork | RockShox Recon Silver RL 150mm | 42mm Offset |
| Front Travel | 150mm |
| Shock | RockShox Deluxe Select | Sealed Bearing Eyelet | 25x8mm F Hardware | XS - SM = 190x45mm | MD - LG - XL = 210x52.5mm | Size-Specific tune in FAQ |
| Rear Travel | 140mm |
| Headset | FSA Orbit NO.57E | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race |
| Stem | Rocky Mountain 31.8 AM | 5° Rise | All Sizes = 40m |
| Handlebar | Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp |
| Grips | Rocky Mountain Lock On Light |
| Brakes | Tektro HD-M275 | Shimano Pad Compatible | F:Tektro 180mm | R:Tektro 180mm |
| Shifters | Shimano Deore 11spd |
| Rear Derailleur | Shimano Deore 11spd |
| Cranks & Chainring | Rocky Mountain Microdrive | 32T |Sram 76mm BCD | 24mm Spindle | Crank Length: XS = 165mm | SM - XL = 170mm |
| Bottom Bracket | Rocky Mountain Sealed BB92 - Shimano Compatible |
| Cassette | SunRace CSMS8 EA1 11-51T |
| Chain | KMC X11-1 |
| Front Hub | Rocky Mountain Sealed Boost 15mm |
| Rear Hub | Novatec D462 Sealed Boost 148mm |
| Spokes | 2.0 Stainless |
| Rims | Rocky Mountain TR30 Tubeless | 32H | Tubeless Compatible - Tape / Valves / Sealant Not Incl |
| Tires | F: WTB Trail Boss Comp 29 x 2.4 // R: WTB Trail Boss Comp 29 x 2.4 |
| Seatpost | Rocky Mountain Toonie Drop Composite 30.9mm | XS - SM = 125mm | MD = 150mm | LG - XL = 170mm |
| Saddle | WTB Volt 142 |
| Weight | This information isn't available yet. We will update the weight of this model as soon as possible. |
Oheiset tiedot on pyritty ilmoittamaan mahdollisimman oikein. Oikeus virheiden korjaamiseen pidätetään.
Kokosuositus
| SIZING CHART | |
|---|---|
| S | 157.5 - 170 cm / 5’2” - 5’7” |
| M | 167.5 - 177.5 cm / 5’6” - 5’10” |
| L | 175 - 188 cm / 5’9” - 6’2” |
| XL | 185.5 - 198 cm / 6’1” - 6’6” |
Geometriataulukko
Toimitukset
Lue tarkemmat toimitus- ja palautusehdot.
Instinct Alloy 10 29" -23
| SPECIFICATIONS | INSTINCT ALLOY 10 |
|---|---|
| Frame | FORM™ Alloy | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-9™ Adjustable Geometry | 2 Position Axle | 140mm Travel. FORM™ Alloy Rear Triangle |
| Fork | RockShox Recon Silver RL 150mm | 42mm Offset |
| Front Travel | 150mm |
| Shock | RockShox Deluxe Select | Sealed Bearing Eyelet | 25x8mm F Hardware | XS - SM = 190x45mm | MD - LG - XL = 210x52.5mm | Size-Specific tune in FAQ |
| Rear Travel | 140mm |
| Headset | FSA Orbit NO.57E | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race |
| Stem | Rocky Mountain 31.8 AM | 5° Rise | All Sizes = 40m |
| Handlebar | Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp |
| Grips | Rocky Mountain Lock On Light |
| Brakes | Tektro HD-M275 | Shimano Pad Compatible | F:Tektro 180mm | R:Tektro 180mm |
| Shifters | Shimano Deore 11spd |
| Rear Derailleur | Shimano Deore 11spd |
| Cranks & Chainring | Rocky Mountain Microdrive | 32T |Sram 76mm BCD | 24mm Spindle | Crank Length: XS = 165mm | SM - XL = 170mm |
| Bottom Bracket | Rocky Mountain Sealed BB92 - Shimano Compatible |
| Cassette | SunRace CSMS8 EA1 11-51T |
| Chain | KMC X11-1 |
| Front Hub | Rocky Mountain Sealed Boost 15mm |
| Rear Hub | Novatec D462 Sealed Boost 148mm |
| Spokes | 2.0 Stainless |
| Rims | Rocky Mountain TR30 Tubeless | 32H | Tubeless Compatible - Tape / Valves / Sealant Not Incl |
| Tires | F: WTB Trail Boss Comp 29 x 2.4 // R: WTB Trail Boss Comp 29 x 2.4 |
| Seatpost | Rocky Mountain Toonie Drop Composite 30.9mm | XS - SM = 125mm | MD = 150mm | LG - XL = 170mm |
| Saddle | WTB Volt 142 |
| Weight | This information isn't available yet. We will update the weight of this model as soon as possible. |
Oheiset tiedot on pyritty ilmoittamaan mahdollisimman oikein. Oikeus virheiden korjaamiseen pidätetään.
| SIZING CHART | |
|---|---|
| S | 157.5 - 170 cm / 5’2” - 5’7” |
| M | 167.5 - 177.5 cm / 5’6” - 5’10” |
| L | 175 - 188 cm / 5’9” - 6’2” |
| XL | 185.5 - 198 cm / 6’1” - 6’6” |
Lue tarkemmat toimitus- ja palautusehdot.
Tällä tuotteella ei ole vielä arvioita.
