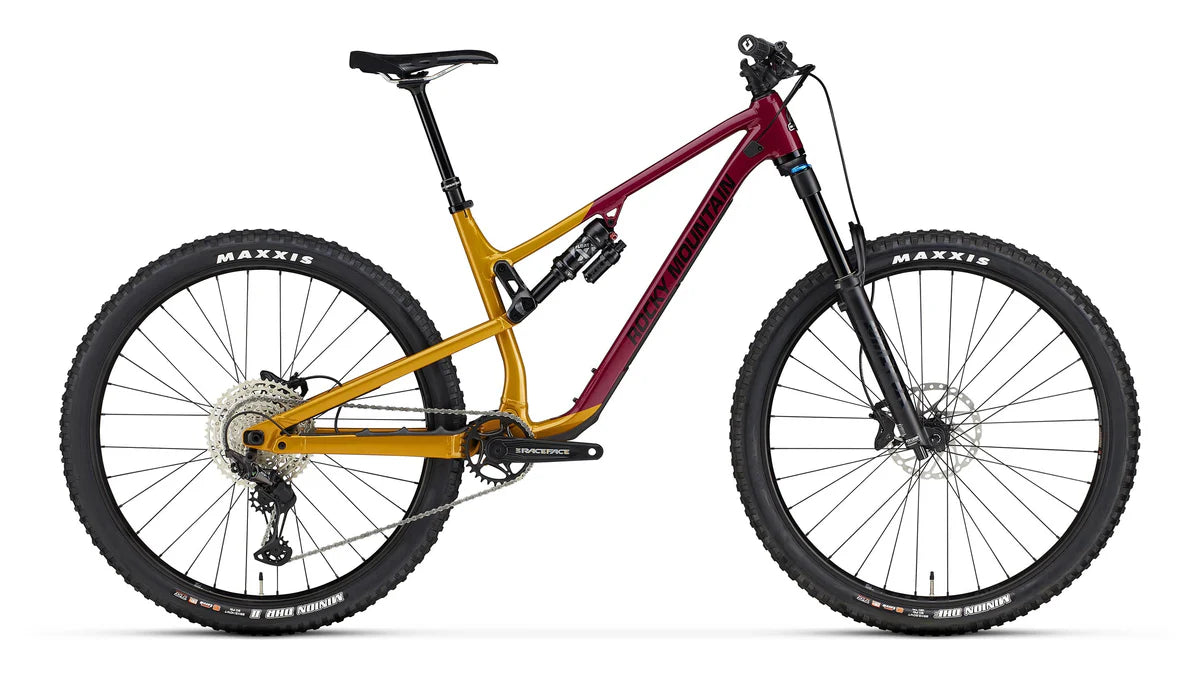

Instinct Alloy 50 -22
Sisältää arvonlisäveron. Toimituskulut lasketaan maksun yhteydessä.
- Rengaskoko 29 tuumaa
- Alumiinirunko
- 150mm etujousto
- Shimano Deore -vaihteisto
- Shimano MT6120 4 Piston -jarrut
- Toimitus jälleenmyyjälle tai nuotopisteeseen 14,90€
-
Toimitus kotiosoitteeseen 45€
Tuotteen esittely
Instinct Alloy 50 -22
Tekniset tiedot
SPECIFICATIONS INSTINCT ALLOY 50 Frame FORM™ Alloy | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-9™ Adjustable Geometry | 2 Position Axle | 140mm Travel. FORM™ Alloy Rear Triangle Fork Fox 36 Float EVOL GRIP Performance Series 150mm | 27.5 = 37mm Offset | 29 = 44mm Offsetold RL 150mm 29 = 42mm Offset Front Travel 150mm Shock Fox Float DPX2 Performance | Sealed Bearing Eyelet | 25x8mm F Hardware | XS ‐ SM = 190x45mm |
MD ‐ LG ‐ XL = 210x52.5mm | Size‐Specific tune in FAQRear Travel 140mm Headset FSA Orbit NO.57E | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race Stem Rocky Mountain 35 AM | 5° Rise | All Sizes = 40m Handlebar Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp Grips Ergon GE10 EVO Lock On Brakes Shimano MT6120 4 Piston | Metal Pads | F:Shimano RT64 180mm | R:Shimano RT64 180mm Shifters Shimano SLX Rear Derailleur Shimano XT Cranks & Chainring Race Face Ride Cinch | 32T | 24mm Spindle | Crankarm Length: XS = 165mm | SM - XL = 170mm Bottom Bracket Shimano SM-BBMT500 Cassette Shimano Deore 10-51T 12spd Chain Shimano M6100 Front Hub Rocky Mountain Sealed Boost 15mm Rear Hub Shimano SLX Boost 148mm Spokes DT Swiss Competition 2.0/1.8/2.0 Rims WTB ST Light i30 TCS 2.0 Tubeless | 32H | Tubeless Ready - Tape / Valves Incl Tires F: Maxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready Seatpost Rocky Mountain Toonie Drop Alloy 30.9mm | XS - SM = 125mm | MD = 150mm | LG - XL = 170mm Saddle WTB Volt Race 142 Weight This information isn't available yet. We will update the weight of this model as soon as possible
Oheiset tiedot on pyritty ilmoittamaan mahdollisimman oikein. Oikeus virheiden korjaamiseen pidätetään.
Kokosuositus
| SIZING CHART | |
|---|---|
| S | 157.5 - 170 cm / 5’2” - 5’7” |
| M | 167.5 - 177.5 cm / 5’6” - 5’10” |
| L | 175 - 188 cm / 5’9” - 6’2” |
| XL | 185.5 - 198 cm / 6’1” - 6’6” |
Geometriataulukko
Toimitukset
Lue tarkemmat toimitus- ja palautusehdot.
Instinct Alloy 50 -22
SPECIFICATIONS INSTINCT ALLOY 50 Frame FORM™ Alloy | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-9™ Adjustable Geometry | 2 Position Axle | 140mm Travel. FORM™ Alloy Rear Triangle Fork Fox 36 Float EVOL GRIP Performance Series 150mm | 27.5 = 37mm Offset | 29 = 44mm Offsetold RL 150mm 29 = 42mm Offset Front Travel 150mm Shock Fox Float DPX2 Performance | Sealed Bearing Eyelet | 25x8mm F Hardware | XS ‐ SM = 190x45mm |
MD ‐ LG ‐ XL = 210x52.5mm | Size‐Specific tune in FAQRear Travel 140mm Headset FSA Orbit NO.57E | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race Stem Rocky Mountain 35 AM | 5° Rise | All Sizes = 40m Handlebar Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp Grips Ergon GE10 EVO Lock On Brakes Shimano MT6120 4 Piston | Metal Pads | F:Shimano RT64 180mm | R:Shimano RT64 180mm Shifters Shimano SLX Rear Derailleur Shimano XT Cranks & Chainring Race Face Ride Cinch | 32T | 24mm Spindle | Crankarm Length: XS = 165mm | SM - XL = 170mm Bottom Bracket Shimano SM-BBMT500 Cassette Shimano Deore 10-51T 12spd Chain Shimano M6100 Front Hub Rocky Mountain Sealed Boost 15mm Rear Hub Shimano SLX Boost 148mm Spokes DT Swiss Competition 2.0/1.8/2.0 Rims WTB ST Light i30 TCS 2.0 Tubeless | 32H | Tubeless Ready - Tape / Valves Incl Tires F: Maxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready Seatpost Rocky Mountain Toonie Drop Alloy 30.9mm | XS - SM = 125mm | MD = 150mm | LG - XL = 170mm Saddle WTB Volt Race 142 Weight This information isn't available yet. We will update the weight of this model as soon as possible
Oheiset tiedot on pyritty ilmoittamaan mahdollisimman oikein. Oikeus virheiden korjaamiseen pidätetään.
| SIZING CHART | |
|---|---|
| S | 157.5 - 170 cm / 5’2” - 5’7” |
| M | 167.5 - 177.5 cm / 5’6” - 5’10” |
| L | 175 - 188 cm / 5’9” - 6’2” |
| XL | 185.5 - 198 cm / 6’1” - 6’6” |
